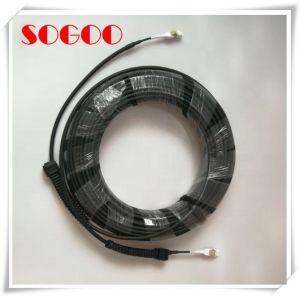

4G 5G FTTA Fiber To The Antenna Duplex Outdoor Branch Patch Cord
Duplex Outdoor Branch Patch Cord is made of GYFJH type fiber optic cable. The cable has small diameter, light weight and thick wall jacket protection, giving it versatile applications.NSN FTTA Duplex Branch Patch Cord for the new generation wireless base stations pulled far tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
1.Connector A: LC/UPC MM 3.0mm connnecor short boot Boot color: Red&Black
2. Connector B: LC/UPC MM 3.0mm connnecor short boot Boot color: Red&Black
3. FTTA fiber optic cable (OD:7.0mm LSZH ,Black jacket,OM2 50/125 fiber)
4.Fanout kit:OD8.0*L20mm
5. water proof connector Black color
6. label:L=25mm
Connector insertion loss and return loss
Measurement
Wavelength(MM=850/1300nm)
Optical specil multimode
1, Insertion Loose <0.3dB
Return loose >35dB
Duplex LC Arbitrary Bending Connector Duplex Boot Φ5.0/ Φ7.0mm Patch Cord
GYFJH cable structure
All dielectric GYFJH type cable containing two simplex Φ2.0mm(or
Φ1.6mm) sub unit cables with waterblocking e-glass strength
members, and then with an overall Φ7.0mm(or Φ5.0mm) LSZH outdoor
jacket. The sub unit cable consist of a 900μm tight buffer optical
fiber in a LSZH inner jacket with aramid yarn.
Cable parameter
| Outer Jacket Material | LSZH | Outer Jacket Color | Black |
| Strength Member | E-glass | Cable OD(mm) | 7.0±0.1 (or 5.0±0.1) |
| Crush(Long term) | 1100 N/100mm | Crush(Short term) | 2200 N/100mm |
| Min Bend Radius(Dynamic)mm | 30D | Min Bend Radius(Static)mm | 15D |
| Maximum Tensile Load(Long term) | 200N | Maximum Tensile Load(Short term) | 400N |
| Fiber Count | 2core |
Sub-unit Parameter
| Sub-unit Color | Orange, Black (available upon request) | Sub-unit Material | LSZH |
| Sub-unit Diameter(mm) | 2.0±0.1(or 1.6±0.1) | Strength Member | Aramid yarn |
| Storage Temperature(°C) | -20°C to 70°C | Installation Temperature(°C) | -20°C to 70°C |
| Operating Temperature(°C) | -20°C to 70°C |
FAQ:How will you control the quality of the fiber optic cable?
We will check each details of the cable.
Sheath: material, color, thickness, printing, feeling.
Cable structure: as per the spec of the cable.
OTDR report for each fiber in the cable.
How will you protect the fiber when packing?
We will use the exporting wodden reel outside.
With EPE foam inside to protect the fiber, and make sure the reel
is user-friendly,
easy to load and install.
How will the goods be shipped?
By sea if the goods is not in urgent need.
By air if the goods is needed urgently.
We have best choices of forwarder for both sea and air.
Look forward to your inquiry on 4G 5G FTTA Fiber To The Antenna Duplex Outdoor Branch Patch Cord.
|
|
